Evolution and Role of Naval UAVs

(Published in special edition of Economic Times, India on 04 Dec 2017)

Earliest mention of a drone/unmanned aerial vehicle (UAV) in the Naval context is found in 1917, when the US Navy commissioned the design of an ‘aerial torpedo’ for use against German U-boats. A contract was awarded to the Curtiss Aeroplane Company, and the airplane was named the Speed-Scout. It was designed to be launched from naval ships carrying a 1,000-lb. payload and to be stabilized by an autopilot. It suffered several failures before it achieved its first successful flight on 06 March 1918, making it the first flight of an UAV. On 15 April 1923, the Naval Research Laboratory’s (NRL) specially equipped F5L seaplane was controlled by radio signals up to a range of 10 miles from the transmitter. The NRL also reported that radio control of take-off and landing of aircraft was possible. Project Fox, equipped with a television camera, was developed by The Naval Aircraft Factory in 1941. It was controlled by TG-2 aircraft and successfully carried out torpedo attack on a destroyer in 1942.

McDonnell Aircraft developed a radio-controlled target drone TD2D-1 in 1942 for anti-aircraft and aerial gunnery practice of U.S. Navy. TD2D was gyro-stabilized, radio-controlled and could be recovered by parachute. The Ryan Firebee was a 23-feet long target drone, which could fly at over 700 miles per hour on a pre-programmed flight path. It could be recovered mid-air by a C-130 Hercules with a capture net, or parachute into the sea for recovery. A modified Firebee with cameras called a ‘Lightning Bug’ could fly over a target area and take aerial pictures, it carried out over 3,000 reconnaissance missions in Vietnam. The drones have been tested on carriers, and have flown in combat, the TDR-1s launched from the USS Sable in 1943, and the Firebees took off from the USS Ranger from 1969 to 1970.

The Gyrodyne model QH-50D was a remotely controlled UAV which was built and delivered to the U.S. Navy as the Drone Anti-Submarine Helicopter (DASH). The QH-50D was a rotary-winged, anti-submarine weapon carrier designed primarily to deliver two MK44 acoustic homing torpedoes or a Mk 17 Nuclear depth charge using the W-44 warhead and also had a provision for a ‘classified weapon’.

The maritime UAV serves in national security, paramilitary and wartime missions. It expands the user’s horizons by providing Over The Horizon Targeting (OTHT). In addition, it increases the scanning area, time over target and the mission flexibility. It also serves in real time battle damage assessment. During peacetime, it prevents the penetration of any sea borne hostile intruder, protects the country’s rights and interests in the Economic Exclusive Zone (EEZ) and supports in Search and Rescue operations. In war-time it assists in achieving naval superiority, helps in destruction of enemy naval forces, defends the coast lines, and supports ground operations (littoral warfare). The role of the Maritime UAV system is to provide unmanned, long endurance aerial reconnaissance, surveillance and target acquisition. In addition, the UAV can create a comprehensive, real time, naval tactical picture for the ship’s commander and naval HQs.

A typical Maritime UAV System consists of at least three aircraft, with ground control system (GCS), Launch & Retrieval Station (LRS), Ground Data Terminal (GDT), Launch & Retrieval Data Terminal (LRDT), and mission oriented Payloads. A typical Payload consists of a Maritime Patrol Radar (MPR) with multi-mode functions, an Electro-Optical sensor with day/night capabilities, and an optional ELINT package. The payload package provides the necessary data for detection, classification, and identification of surface vessels at sea. Having a line of sight data link package provides a system range of 250 km and an air data relay extends the patrolling distance to 350 km.

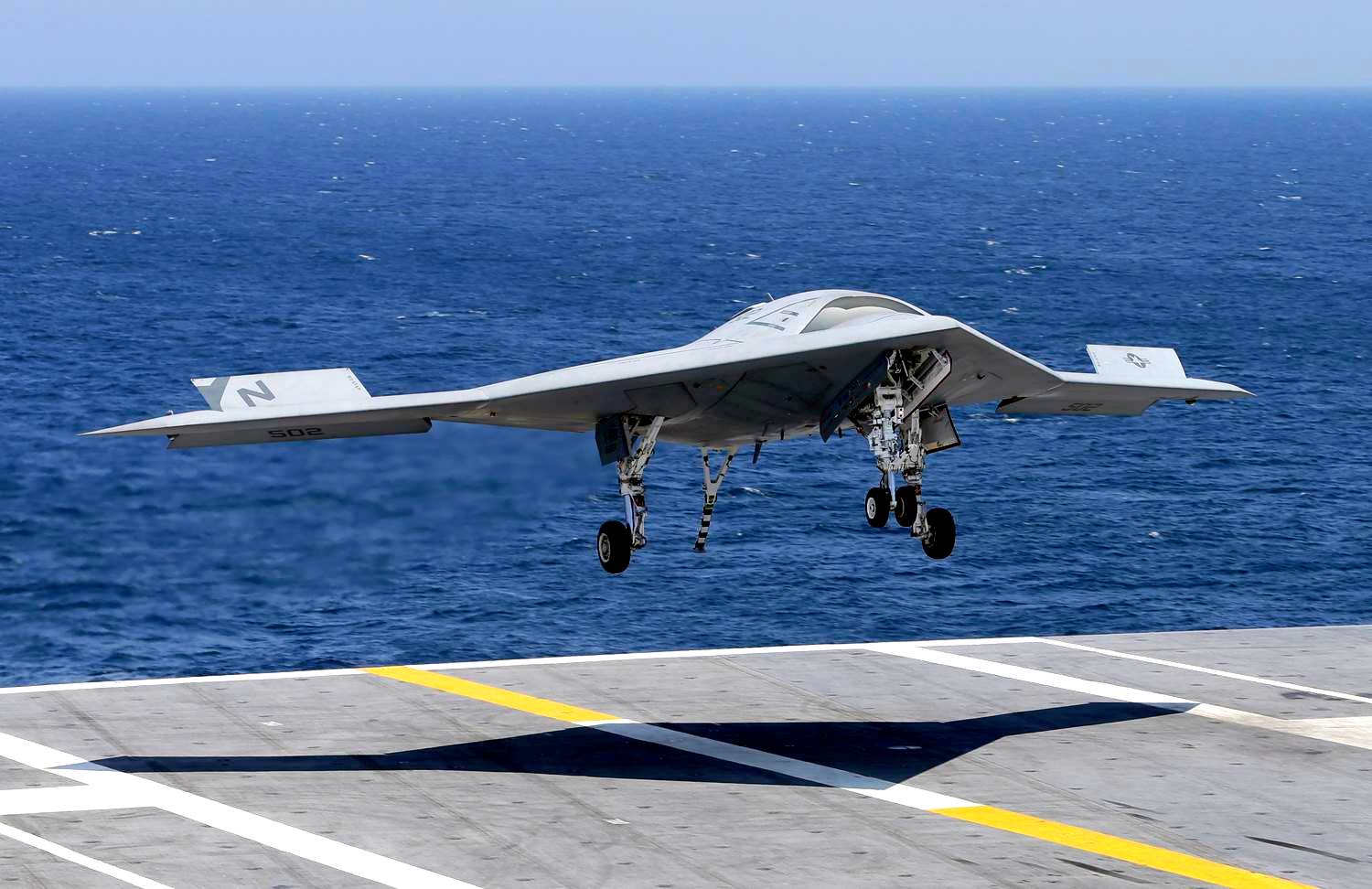

The launching of UAVs from warships presents less of a challenge than recovery. UAVs can be launched through a variety of catapult options, including rocket-assisted take-off (RATO) as used by the US Navy for embarked Pioneer UAV operations. The IN operates the Lakshya unmanned aerial target system that uses boosters to launch without any ground run. Recovery of UAVs is more problematic than their launch. Vertical landing UAVs can be recovered using manual remote piloting to a conventional vertical landing, or by automatic landing systems such as the US UAV common automatic recovery system (UCARS). Fixed wing UAVs are presently recovered by more extreme methods, such as by flying it into a recovery net, by stopping the motor and ditching it into the water by parachute for a manual recovery, or by mid-air recovery using a manned helicopter or aircraft.

The IN currently operates the Heron and the Searcher MK II UAVs manufactured by Israel Aerospace Industries. These are capable of beaming real time live pictures of maritime targets to Commands ashore, thus enhancing the joint defence capability by synergizing capabilities of the Army, Air Force, Coast Guard, and local authorities. The Ministry of Defense (MoD) has initiated a request to the US for procuring 22 multi-mission Guardian UAVs for the Indian Navy. A RFI has also been issued for 50 ‘Naval Ship-Borne Unmanned Aerial Vehicles’ (NSUAS) for Intelligence, Surveillance & Reconnaissance (ISR), monitoring of Sea Lines of Communication (SLOC), Exclusive Economic Zone safety, anti-piracy, and anti-terrorism functions along with Search and Rescue (S&R) roles. The MoD, is also considering procurement of Medium Altitude Long Endurance (MALE) UAVs for use by the three defense services.

For the near future, the US Navy is progressing ahead with procurement of The Broad Area Maritime Surveillance UAS (BAMS UAS), the Vertical Take-off and Landing UAV (VTUAV) Fire Scout MQ-8B unmanned helicopter, and The Small Tactical UAS (STUAS), RQ-21 Blackjack. The indigenous AURA and Rustom (& its variants) are being developed by DRDO for the Indian Armed Forces.

The question that the Indian Navy faces today is, whether it is ready to go for development of fully autonomous unmanned systems, which would be cable of engaging a target and inflicting lethal damage on their own? Is the Indian Navy willing to develop technologies that empower the vehicle with embedded artificial intelligence to make the final decision to launch weapons at the target independent of any human intervention? If yes, then there is a need for the Indian Navy to look in to:

– technologies and software formulations which would permit an unmanned vehicle to launch itself, proceed to learn acoustic/magnetic/electromagnetic signatures, and identify the target on its own.

– technologies, which are more environmental friendly, for e.g. the use of green plastics of the poly hexahydrotriazines or PHTs category, and green electrical power including its storage for long endurance operations.

– a resilient architecture that can act as a redundant pathway to atmospheric communications through electromagnetic domains including digital communications utilizing fibre domain.

– Distributed manufacturing to enable efficient use of resources, with less wasted capacity in centralized factories, and develop 3D printing of circuit boards and other integrated electronic components.

– cognitive testing aspects of software for unmanned vehicles today to fruitfully operate autonomous vehicles of tomorrow.

– exploring technologies for developing new types of weapons for use in the autonomous vehicles.

– focusing on the technology developments in the commercial sector, especially in the software, and the artificial intelligence sectors. As it appears, the only option is to synergize with the commercial sector to ensure that UAVs become a force multiplier in the next decade.
